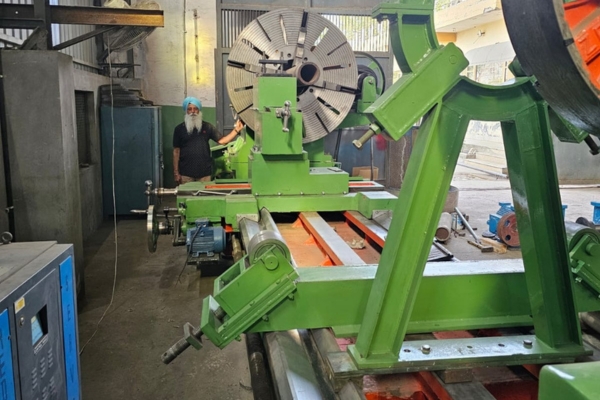

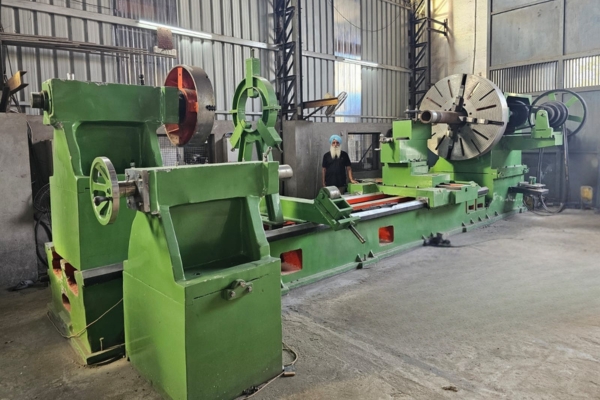

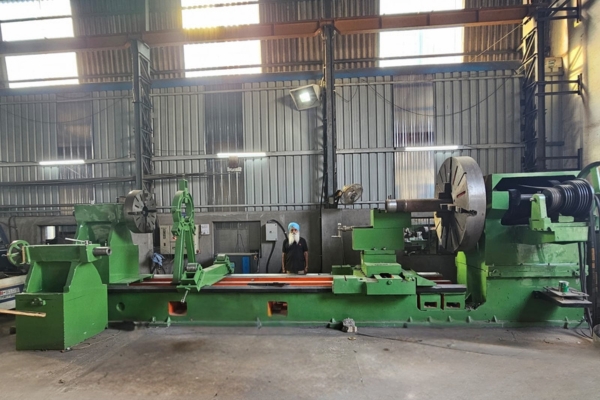

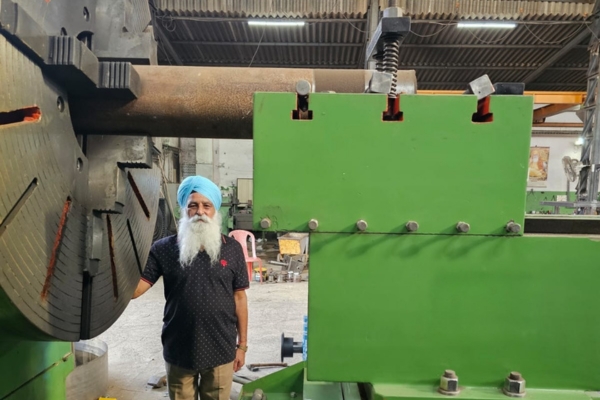

Lathe Machine
Techno Commercial Offer - Lathe Machine
| Name of Machine | Lathe |
|---|---|
| Bed Length | 26 Feet |
| Bed Width | 52 Inch |
| Swing over the Bed (Maximum Dia of Job) | 2500 mm |
| Swing over the Slide | 2140 mm |
| Swing in the Gap | 3200 mm |
| Admin Centre (Length of Job) | 5200 mm |
| Spindle Bore | 145 mm |
| Head Stock | Heavy Duty with Chuck 60 Inch |
| Tail Stock | One is Normal Other is with Chuck 30 Inch |
| Tool Post | 3 T Slot on Compound Slide |
| Compound Slide Movement | 24 Inch ++ |
| Gap | Double Gap |
| Bed Ways | Special Casted with High Chrome & Magnesium |
| Longitudinal Slide | Rapid Move with Motor & Manual |
| Full Circle Door Beam | Bearing Type Having Capacity 400 mm |
| Half Circle Door Beam | Heavy Duty for Job approx. 2000 mm Dia |
| No. of Speeds | 6 |
Note: This is a very Heavy Duty Machine & Brand New, We can offer this machine in INR. 35,00,000/- (GST Extra 18%)
TERMS & CONDITIONS:
- PAYMENT 100% AGAINST DELIVERY.
- DELIVERY READY STOCK.
